LED Street light 1906A series 30W to 150W
LED Street light 1906A series 30W to 150W
LED Street light 1906A series 30W to 150W
LED Street light 1906A series 30W to 150W
LED Street light 1906A series 30W to 150W
LED Street light 1906A series 30W to 150W
LED Street light 1906A series 30W to 150W

LED Street light 1906A series 30W to 150W

Regular price
₱0.00
Sale price
₱0.00
Tax included. Shipping calculated at checkout.

LED Street light 1906A series 30W to 150W

  • Die-casting aluminum housing, super resistance to corrosion.

  • Excellent thermal management

  • High efficient SMD leds

  • Patented optics for increased application efficiency

  • Input voltage: AC110-277V, 50/60Hz, IP65, IK08

  • Watts scope: 30W~150W

  • Light efficiency: 120LM/W

  • Beam angle: 150*75°



NCT 1906A series luminaire is the ideal solution that fulfills requirements of functional street lighting and residential areas, which work with outstanding heat dissipation and compacting system. Equipped with high quality electrical components, long lifetime is assured. Efficient system could reduce energy consumption and create a more attractive urban living environment and visual comforts for public and residential areas.

NCT 1906A series LED street light luminaire comes with a robust optic compartment design, enable many different options of LED chipset and optic lens modules, which will help customers to always cope with the latest development of efficiency of LED by using different types of LED.

NCT 1906A series LED street light luminaire can either be post-top or side- entry mounted.

NCT 1906A series LED street light luminaires are fitted with an adjustable inclination system to facilitate photometric adjustments on-site for optimal photometric performance.

Modern and fashion design of the appearance, make the light become an artwork, integrated the environment perfectly, to made it as top project

Glass cover and acrylic lens, high strength impact resistance,

NCT 1906AS-30W/50W, 1906AM-80W/100W, 1906AL-120W/150W:
 Input Voltage: 100-277V AC, 50/60 HZ
 Options: 10kv/20kv SPD
 Rated luminous flux: luminous efficacy: 125lm/W;
 Light color: Grey
 Color temperature: 4000K or customized
 Protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation),
 Certification: CE, ENEC, VDE, RoHS
 Impact resistance: IK09,
 Permissible operating ambient temperature for outdoor applications: - 25.+50°C, standard-compliant lighting for roads and squares,
 Control modes for options, dimming DALI/1-10V/0/10V, Light control. Flexible luminous flux parameterization, time- dependent luminous flux control, constant luminous flux control, overheat protection, electronic power reduction;

Options: 10kv/20kv SPD

              0-10V Dimming Driver

              Auto Switch

              Nema socket

              Photocell

Parameters Table:


Photo Gallery

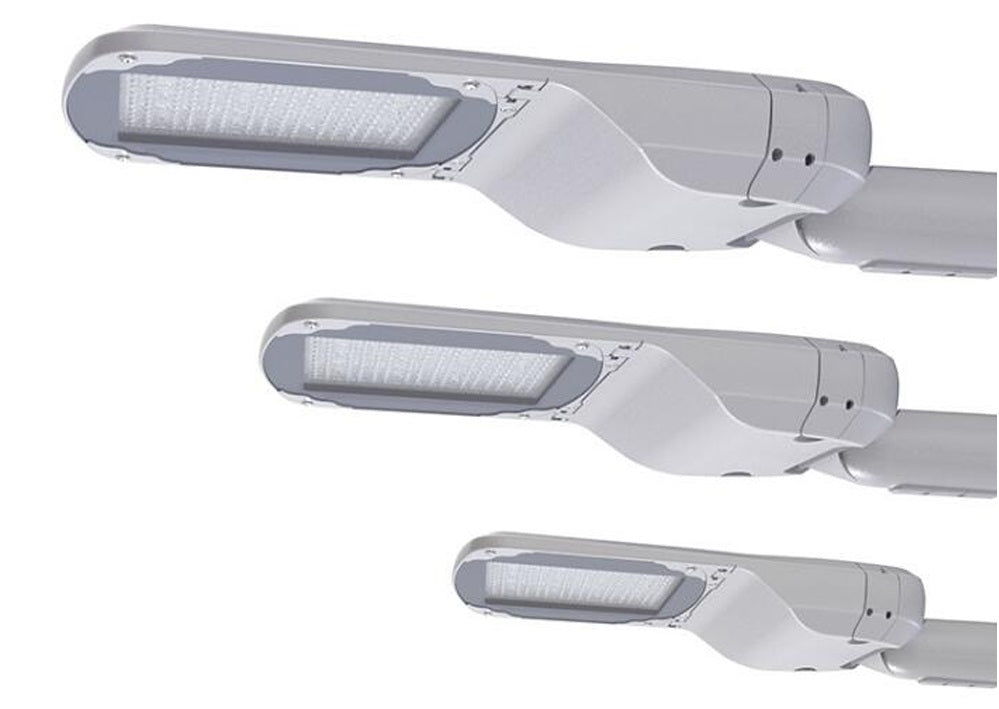

 led street light 1

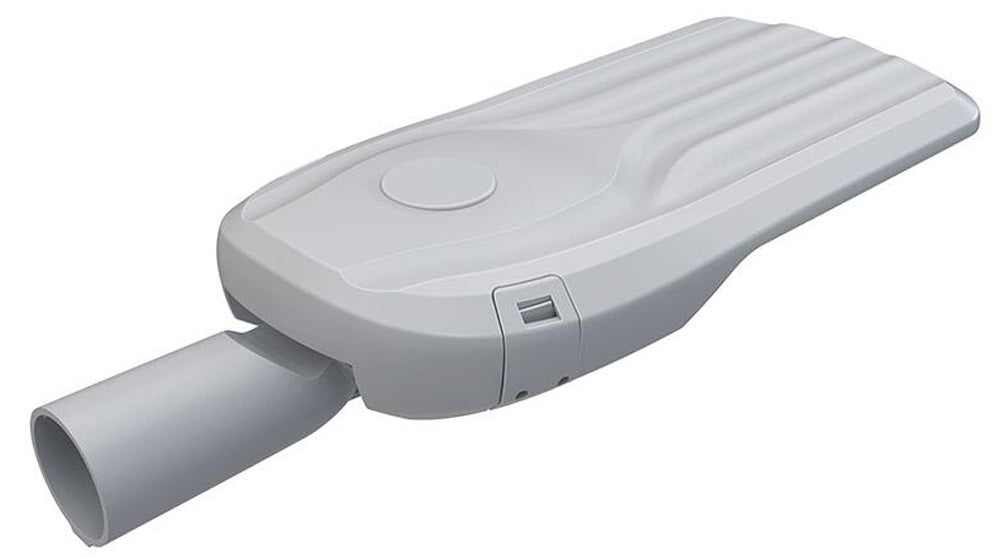

led street light 2

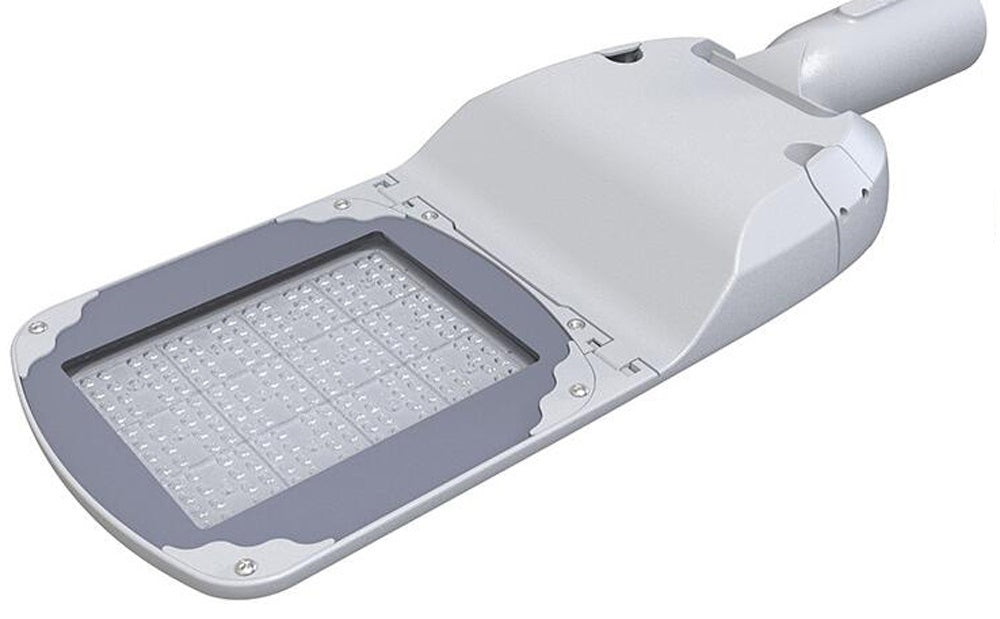

led street light 3

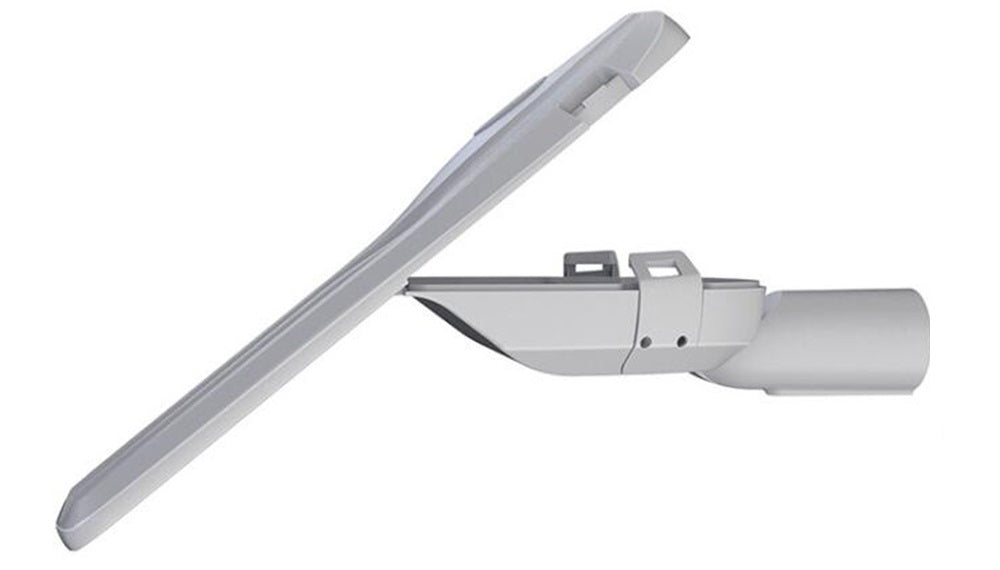

led street light 4

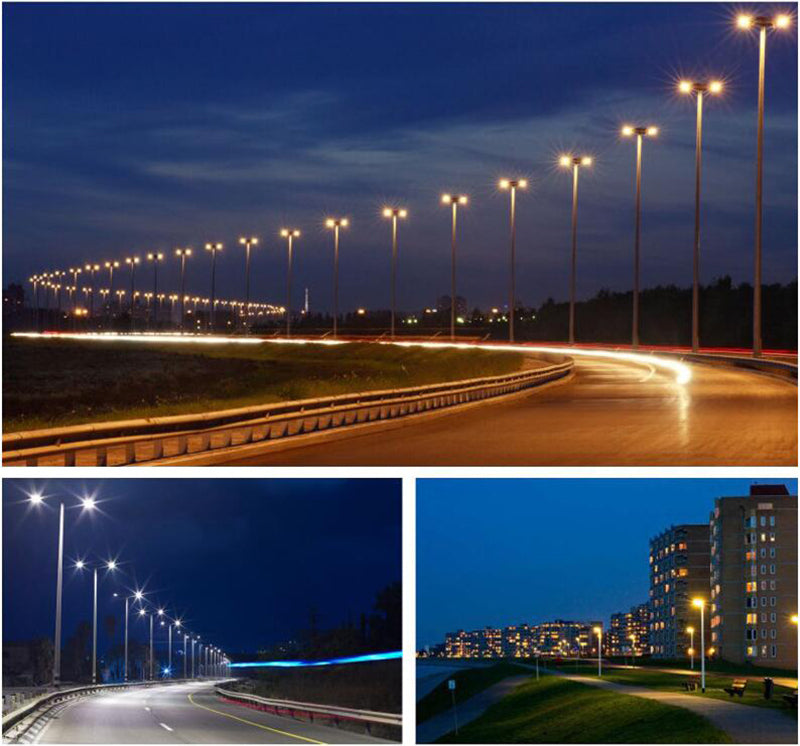

Applications

led street light
